RTX Dakota Digital Dash 1956 Ford F100

$1,555

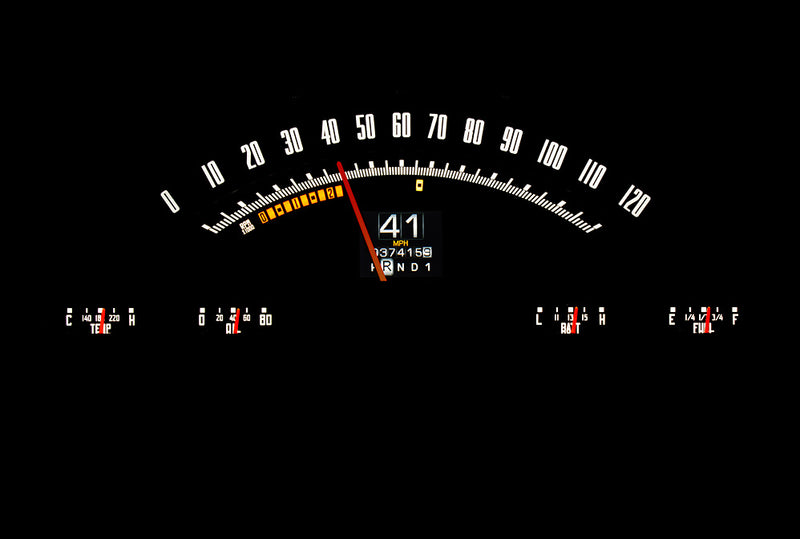

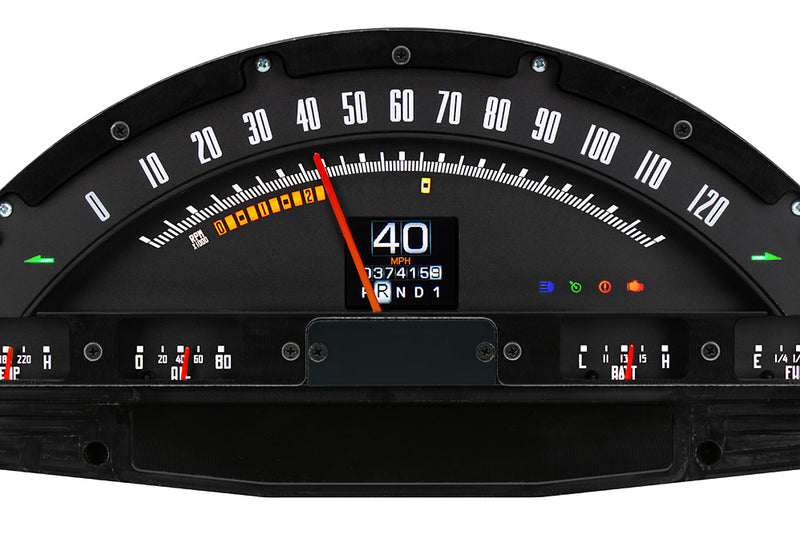

1956 F100 factory appearance gauge cluster from Dakota Digital. It is perfect for all of your Crown Vic 4.6L swaps and Coyote swaps and works easily with all the old school engine combos as well. For proper function with your Ford computer controlled engines, you will need the OBD2 connector interface and for aftermarket EFI there are ECU adapters that pull directly from the ECU's CAN bus to display critical engine function with minimal wiring.



Install Manual:

https://www.dakotadigital.com/pdf/RTX-56F-PU.pdf

Wiring and Setup Manual:

https://www.dakotadigital.com/pdf/RTX_manual_main.pdf



0-120 MPH speedo

0-8000 RPM tach (Digital Bar Graph Display)

0-80 PSI oil pressure

100-260 F water temp

E, 1/4, 1/2, 3/4, F fuel level

9-17 VDC volts





Display and Performance: Odometer, Trip A/B, 12hr Clock, Fuel Range, 0-60 MPH timer, 1/4 and 1/8 mile time, 1/4 and 1/8 mile trap speed, High speed and RPM recall.



Built-in Indicators: L/R turn, High Beam, Check Engine, Park Brake, Cruise, Gear Position (requires sensor upgrade), Two Programmable Aux indicators, Analog gauges have red warning indicator.



Sensors/Lighting/Calibration: 1/8 NPT water and oil pressure senders, Cable Driven Speed Sensor (modern transmissions with EFI will need OBD2 box or aftermarket ECU box upgrades) Dash comes with LED back-lighting, brightness adjustable for day and night time, over 30 color options allowing independent changes to needle color, sweep color and TFT display color. Push button Control for setup and driver options. Also configurable through mobile app on Android and Apple devices. All calibration settings are handled through push button control or mobile app.
